在建筑行業蓬勃發展的當下，門窗作為建筑圍護結構的重要組成部分，其質量和性能備受關注。而開齒穿條機，這一在門窗制造領域發揮著關鍵作用的設備，正逐漸走進大眾視野。它以出色、合理的加工能力，為生產優良門窗提供了堅實保障，成為推動門窗行業技術進步與發展的重要力量。?

In the current booming development of the construction industry, doors and windows, as important components of building envelope structures, have attracted much attention for their quality and performance. And the toothed threading machine, which plays a key role in the field of door and window manufacturing, is gradually entering the public eye. It provides a solid guarantee for the production of high-quality doors and windows with efficient and precise processing capabilities, and has become an important force in promoting technological progress and development in the door and window industry. ?

開齒穿條機的基礎認知?

Basic understanding of toothed threading machine

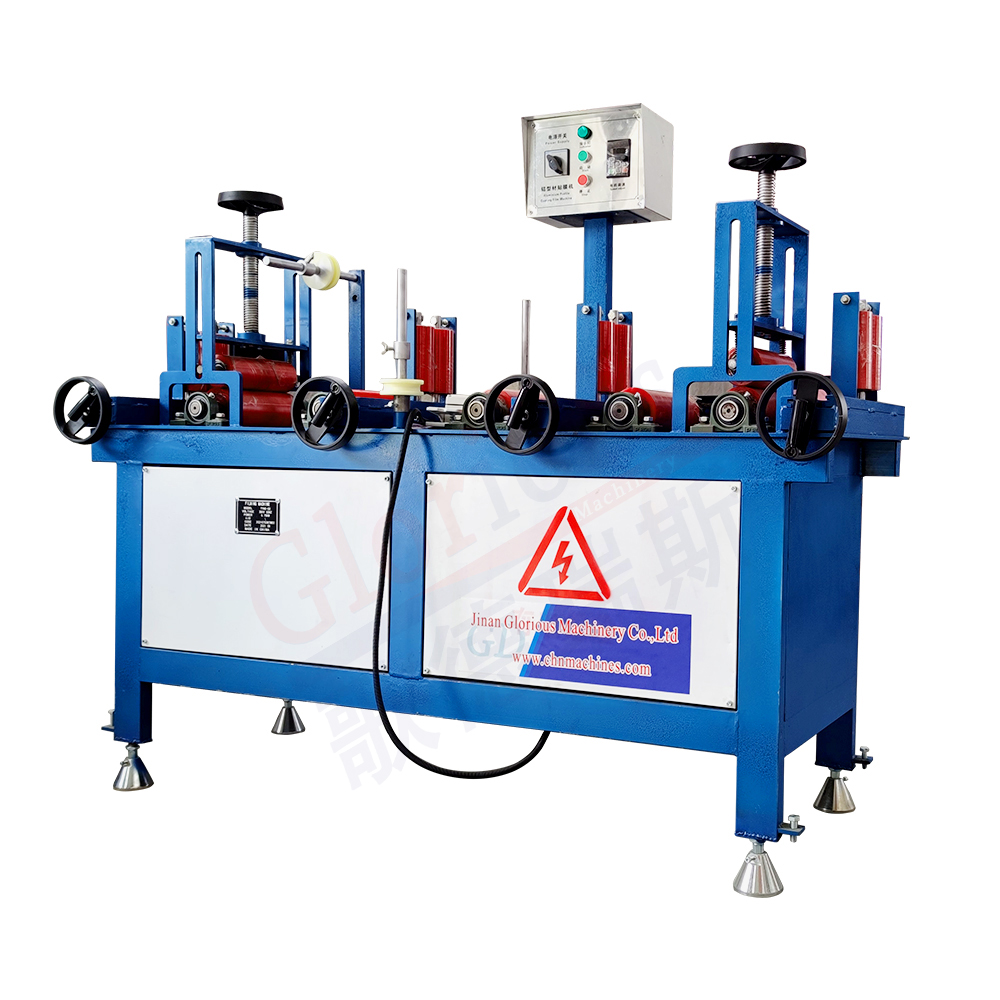

開齒穿條機是一種專門用于門窗型材加工的專業設備，主要應用于斷橋鋁門窗的生產過程中。其核心功能是通過一系列精密的機械操作，將隔熱條與鋁合金型材緊密結合，從而實現斷橋鋁門窗優異的隔熱、隔音及密封性能。從外觀上看，開齒穿條機通常由多個部分組成，包括機身框架、開齒裝置、穿條機構、傳動系統以及控制系統等。機身框架采用高強度鋼材制造，具有良好的穩定性和剛性，能夠承受設備運行過程中的各種作用力，確保加工過程的準確性。?

The toothed threading machine is a specialized equipment for processing door and window profiles, mainly used in the production process of bridge cut aluminum doors and windows. Its core function is to tightly integrate the insulation strip with the aluminum alloy profile through a series of precise mechanical operations, thereby achieving excellent insulation, sound insulation, and sealing performance of the bridge cut aluminum doors and windows. From the appearance, the toothed threading machine is usually composed of multiple parts, including the body frame, toothed device, threading mechanism, transmission system, and control system. The fuselage frame is made of high-strength steel, which has good stability and rigidity, and can withstand various forces during equipment operation, ensuring the accuracy of the processing. ?

工作原理與功能特點?

Working principle and functional characteristics

精密開齒，增強連接強度?

Precise tooth opening enhances connection strength

開齒裝置是開齒穿條機的關鍵部件之一。其工作原理基于特殊設計的刀具，在隔熱條表面滾壓出特定形狀和深度的齒形痕跡。這些齒形如同細密的牙齒，當隔熱條與鋁合金型材結合時，能夠出色大地增加兩者之間的摩擦力和剪切力。在實際操作中，電機驅動刀具高速旋轉，隔熱條通過特定的輸送裝置被合理地送入刀具工作區域。刀具按照預設的參數，在隔熱條表面均勻地滾壓出齒形，確保每個齒形的尺寸精度和表面質量。這種精密的開齒工藝，使得隔熱條與鋁合金型材在后續的穿條和滾壓過程中，能夠緊密咬合，有效防止隔熱條在使用過程中出現松動或脫落現象，大大提高了門窗整體結構的穩定性和連接強度。

The toothed device is one of the key components of the toothed threading machine. Its working principle is based on specially designed cutting tools that roll specific shaped and deep tooth marks on the surface of the insulation strip. These teeth are shaped like fine teeth, and when combined with aluminum alloy profiles, they can greatly increase the friction and shear forces between the two. In practical operation, the motor drives the tool to rotate at high speed, and the insulation strip is precisely fed into the tool working area through a specific conveying device. The cutting tool rolls out the tooth profile evenly on the surface of the insulation strip according to the preset parameters, ensuring the dimensional accuracy and surface quality of each tooth profile. This precise tooth opening process enables the insulation strip to tightly engage with the aluminum alloy profile during subsequent threading and rolling processes, effectively preventing the insulation strip from loosening or falling off during use, greatly improving the stability and connection strength of the overall structure of doors and windows.

出色穿條，實現緊密貼合?

Efficient threading for a tight fit

穿條機構負責將開齒后的隔熱條準確無誤地穿入鋁合金型材的槽口之中。這一過程需要高度的合理度和穩定性，以確保隔熱條與鋁合金型材緊密貼合。穿條機構通常采用電機驅動的方式，通過傳動鏈條或皮帶帶動穿條裝置運動。在穿條過程中，鋁合金型材被固定在工作臺上，隔熱條則通過專門的導向裝置，以一定的速度和角度準確地插入鋁合金型材的槽口。為了保證穿條的順利進行，穿條機構還配備了傳感器和控制系統，能夠?qū)崟r監測穿條的位置和狀態。一旦出現穿條不暢或位置偏差等問題，控制系統會立即發出警報并停止設備運行，以便操作人員進行調整。這種出色、合理的穿條工藝，使得隔熱條與鋁合金型材能夠緊密結合，形成一個完整的隔熱斷橋結構，有效提升了門窗的隔熱性能。

The threading mechanism is responsible for accurately threading the heat-insulating strip into the slot of the aluminum alloy profile after tooth opening. This process requires a high degree of precision and stability to ensure a tight fit between the insulation strip and the aluminum alloy profile. The threading mechanism is usually driven by a motor, which drives the threading device to move through a transmission chain or belt. During the threading process, the aluminum alloy profile is fixed on the workbench, and the insulation strip is accurately inserted into the slot of the aluminum alloy profile at a certain speed and angle through a specialized guide device. In order to ensure smooth threading, the threading mechanism is also equipped with sensors and control systems, which can monitor the position and status of the threading in real time. Once problems such as poor threading or positional deviation occur, the control system will immediately issue an alarm and stop the equipment operation for operators to make adjustments. This efficient and precise threading process enables the insulation strip to be tightly integrated with the aluminum alloy profile, forming a complete insulation bridge structure, effectively improving the insulation performance of doors and windows.
